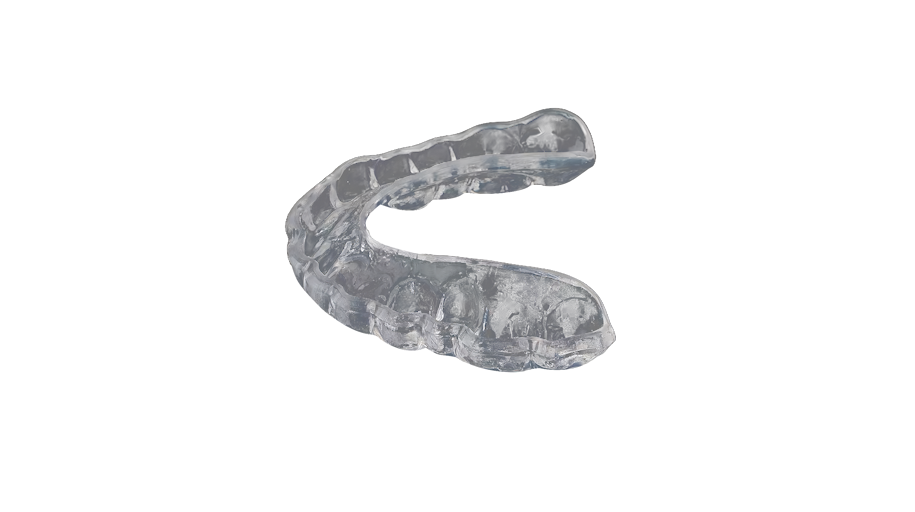

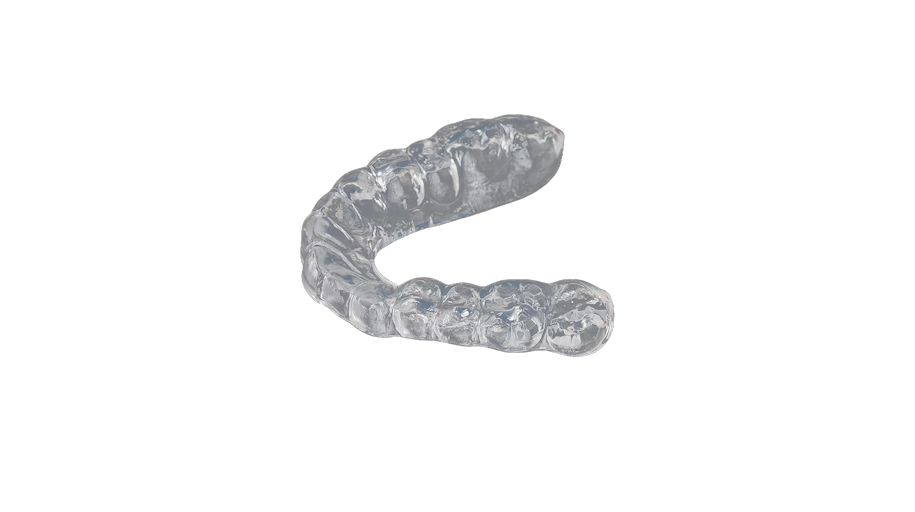

Hard & Soft Night Guard
Night guards and occlusal guards can bring relief to patients that are experiencing discomfort due to bruxing and grinding.
contact us
Restoration Details
Indications
1. Moderate to severe bruxism
2. Tooth sensitivity and pain from clenching
3. Patients needing both protection and cushioning
4. TMD, jaw muscle soreness
5. Those who find all-hard night guard uncomfortable
6. Bruxism with light to medium occlusal force
Material Composition
Ethylenvinylacetat, Thermoplastic Polyurethan TPU
Preparation Tips
1. Take accurate upper/lower impressions without distortion.
2. Record correct centric occlusion and jaw relationship.
3. Ensure sufficient interocclusal space for both layers.
4. Design even thickness (hard & soft layers) for balance.
5. Avoid sharp edges; smooth and polish thoroughly.
6. Verify passive fit and comfort before delivery.
7. Adjust occlusion to eliminate premature contacts.
Strength Characteristics (MPa)
1. Hard outer layer: Flexural strength 80–120 MPa, hardness Rockwell M 85–95
2. Soft inner lining: Tensile strength 3–6 MPa, good elasticity & shock absorption
3. Combined: high fracture resistance + cushioning effect
